Angled Intermediary Interface for ISMS™ Red Dot Interfaces
- Length: 32 mm/1.26”
- Width: 30.5 mm/1.20”
- Height: 55.7 mm/2.19”
- Weight: 33 g/1.7 oz
- EAN: 7340150710842

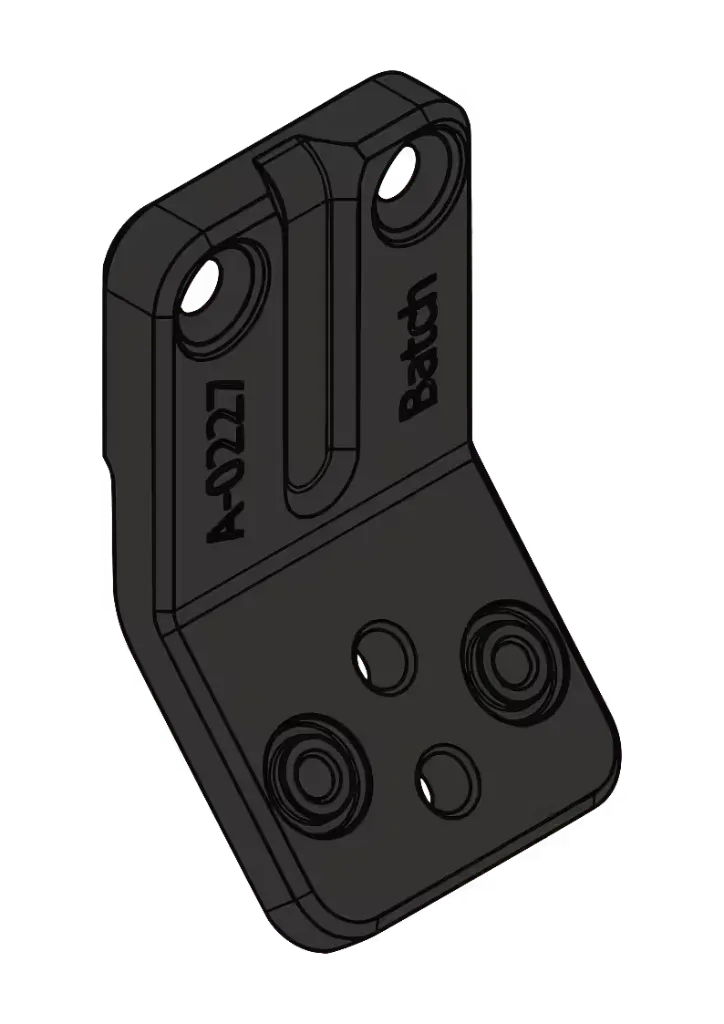

The A-0227 Angled Universal Interface is a lightweight aluminum interface for attaching Ideal Scope Mount
System™ (ISMS™) accessories at a 20-degree angle to a Spuhr Interface™, such as on the ISMS™ series of
mounts.

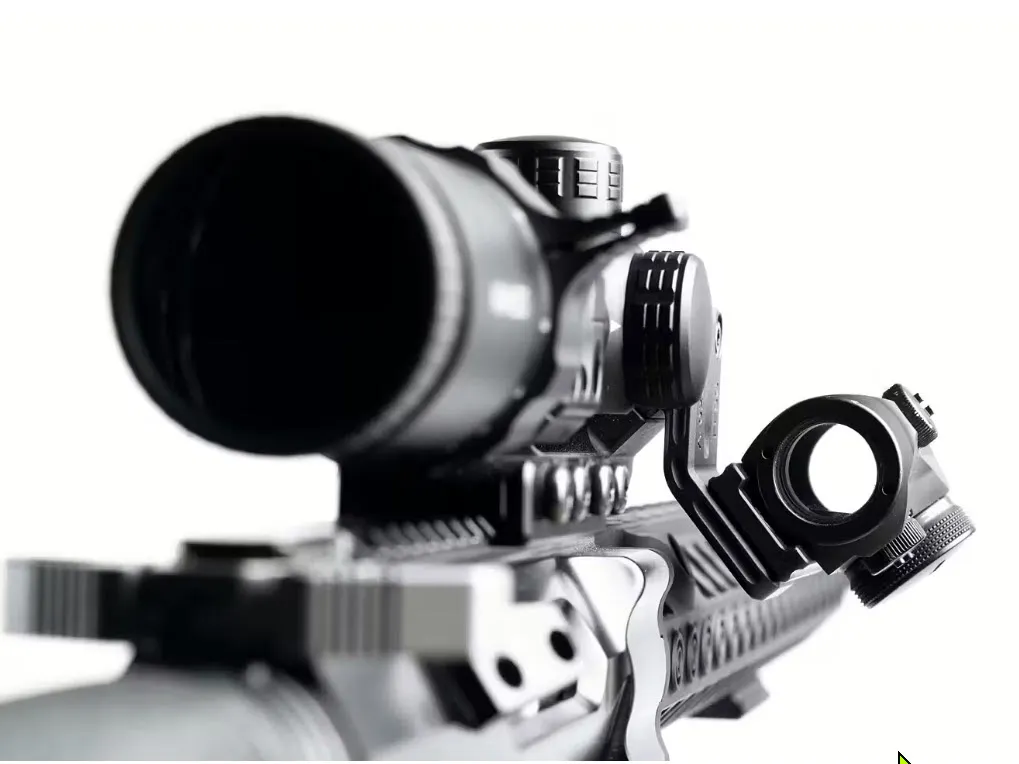

The A-0227 is designed to position the accessory at the 4:30, or the 7:30-position for left-handed use, so that
the rifle can be rotated to the side without the shooter having to break cheek weld to use the accessory.
The A-0227 is especially suitable for the following Red Dot interfaces:
- A-0009 DeltaPoint Interface
- A-0010 Trijicon RMR Interface
- A-0011 Docter/Burris Interface
- A-0055 Aimpoint ACRO Interface
- A-0225 C-More Interface
- A-0226 Shield Interface
Note: The A-0227 is also included in the A-0228 Micro Side Interface for Aimpoint Micro series.
The A-0227 is made from 7075 T651 aluminum and is hardcoat anodized and includes ZiNi-coated fasteners.
